TORQUE WRENCH

Product sheet Return to list

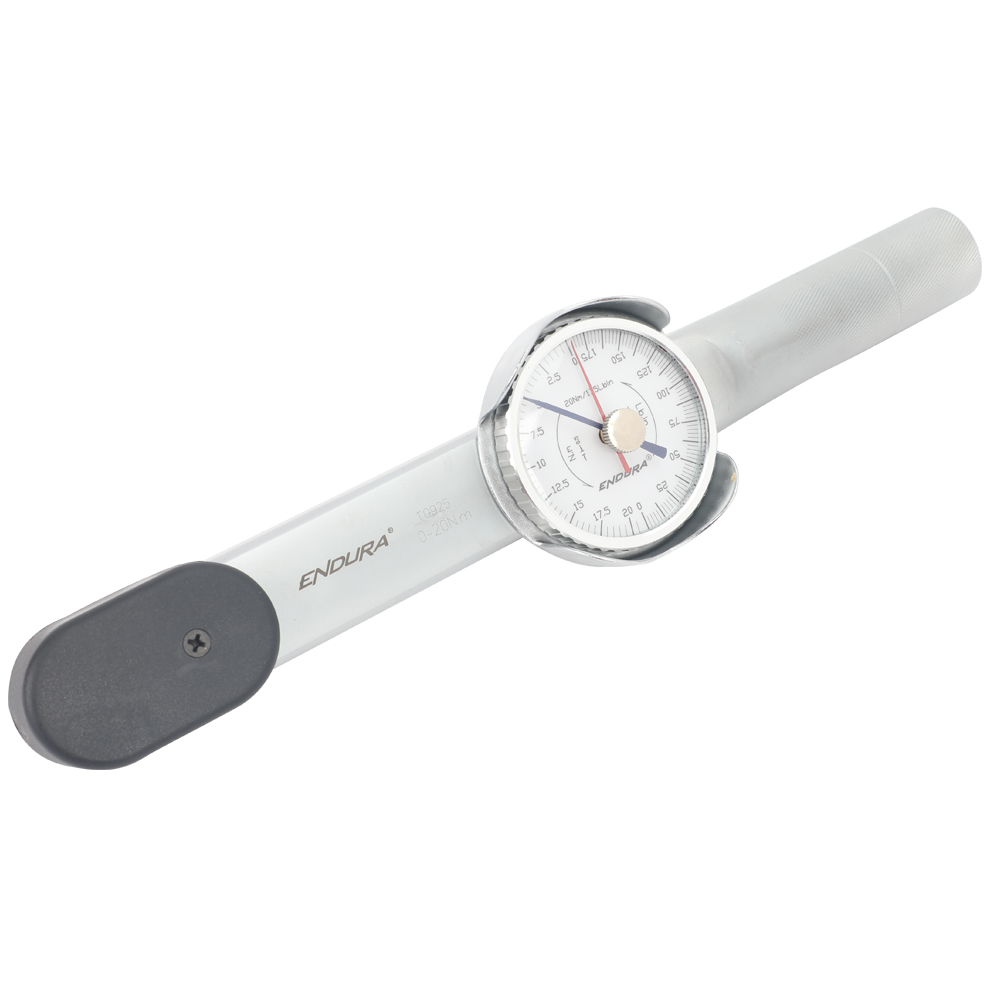

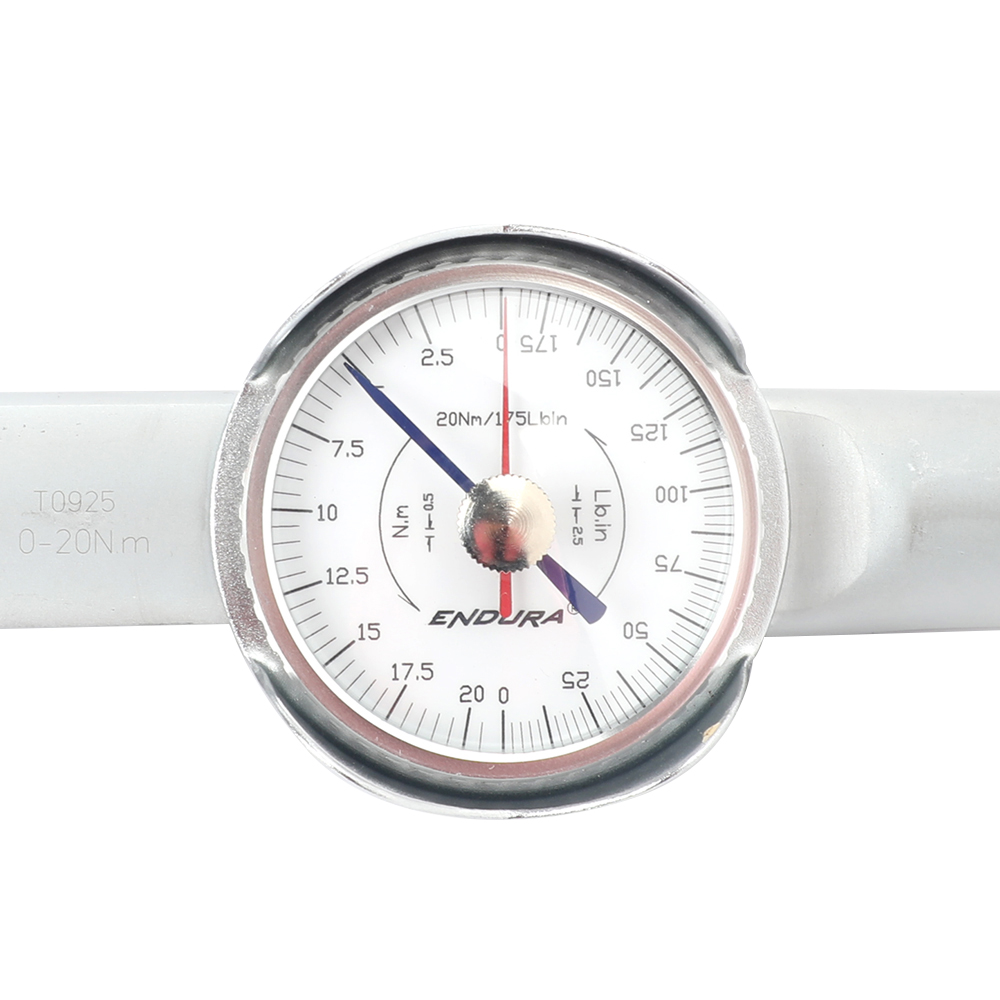

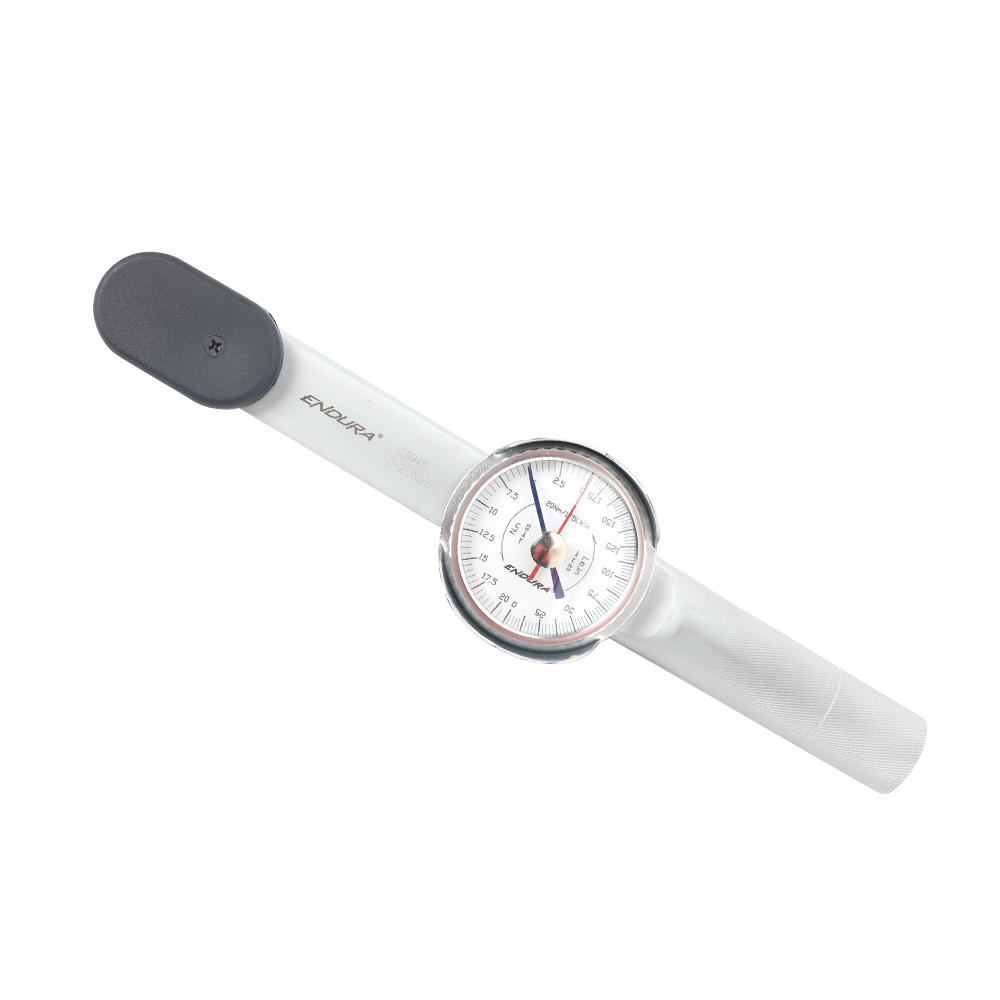

■ The pointer dial torque wrench reads intuitively and is easy to operate
■ Nylon protection makes the square tenon shaft diameter more reliable
■ Anti-glare display panel, easy to read data
■ Rotate the dial 180°to select metric or imperial scale
■ Clockwise single-way operation, with maximum data hold function
■ Error accuracy:±3%; error accuracy above 400N.m:±4%, meet American ASMB107.14E standard
  • PART# CONTENTS
    (N.m)    LENGTH
    (mm)    DRIVERDIVISION VALUEPACKING QUANTITY
  • T0913 0—23101/4"0.051
  • T0914 0—33101/4"0.051
  • T0915 0—63101/4"0.11
  • T0916 0—83101/4"0.21
  • T0920 0—123103/8"0.21
  • T0924 0—17.53103/8"0.251
  • T0925 0—203103/8"0.51
  • T0926 0—253103/8"0.51
  • T0927 0—303103/8"0.51
  • T0928 0—354003/8"0.51
  • T0929 0—404003/8"11
  • T0930 0—504003/8"11
  • T0931 0—604003/8"11
  • T0934 0—1004801/2"21
  • T0935 0—1204801/2"21
  • T0936 0—1404801/2"21
  • T0937 0—2005501/2"51
  • T0938 0—2505501/2"51
  • T0939 0—2755501/2"51
  • T0940 0—3505501/2"51
  • T0980 0—4008183/4"101
  • T0965 0—5008183/4"101
  • T0989 0—60011923/4"101
  • T0994 0—80011923/4"201
  • T0995 0—100011923/4"201
  • T0996 0—140016201"201
  • T0997 0—200016201"501
